Description
SPECIFICATIONS:

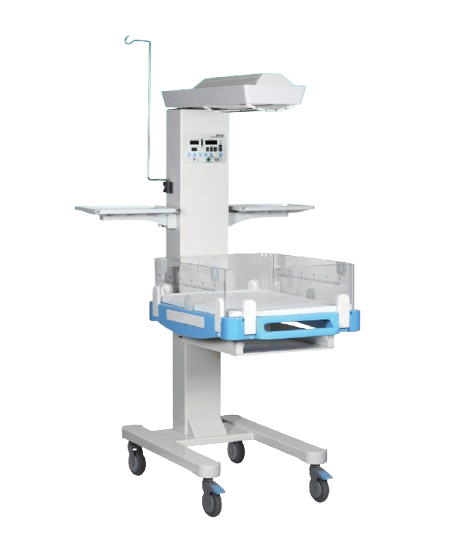

The HKN-9010 is an industry-standard, microcomputer-controlled infant radiant warmer engineered to provide an open, stable, and highly accessible thermal environment. Ideal for delivery rooms, Neonatal Intensive Care Units (NICUs), and high-dependency nurseries, it delivers precise radiant heat control during resuscitation, stabilization, and diagnostic examinations, ensuring unobstructed clinical intervention for newborns and premature infants.
Key Features
- Three Flexible Thermal Control Modes: Microprocessor-controlled settings support Pre-warm Mode (low-heat mattress preparation), Manual Mode (user-regulated 0%–100% heat output), and Baby Mode (servo-controlled temperature tracking via a skin probe).
- Dual Multi-Parameter Displays: Intuitively engineered with separate panels that continuously isolate the target set temperature and the infant’s real-time skin temperature.
- Adjustable Radiant Overhead Module: The horizontal angle of the heating head can be smoothly adjusted, allowing clinicians to tilt the module away to accommodate mobile X-ray equipment or other surgical procedures.
- Ergonomic, Accessible Bassinet: Designed with an adjustable trendelenburg/reverse-trendelenburg tilt mechanism, integrated fold-down or detachable organic acrylic glass side panels, and an under-bed X-ray cassette drawer to capture radiographs without disturbing the infant.
- Integrated APGAR Timer: Features a built-in digital APGAR timer with helpful acoustic alarms at standard 1-minute, 5-minute, and 10-minute intervals to streamline postpartum scoring.
- Fail-Safe Alarm System: Equipped with full audible and visible self-checking alerts for critical errors, including over-temperature cuts, temperature deviations (±1°C), sensor disconnection, fan failures, and power outages.
Technical Specifications
- Power Supply: AC 220V–230V, 50Hz (Maximum Input: 600VA–850VA)
- Heater Element Maximum Output: 540W (Quartz infrared heating tube)
- Baby Mode Temp Control Range: 34.5°C – 37.5°C
- Skin Temperature Sensor Accuracy: ≤ ±0.3°C
- Bassinet Inclination Angle: Adjustable up to ±15°
- Standard Infrastructure Configuration: Main body (warmer head, mobile H-base stand, column, and controller module), adjustable I.V. pole (max 2kg load), and an integrated monitor shelf tray (max 2kg load).
- Connectivity: Built-in RS-232 data output connector for central nursery monitoring or hospital information networks.
For more information on this product, please click here.
