SPECIFICATIONS:

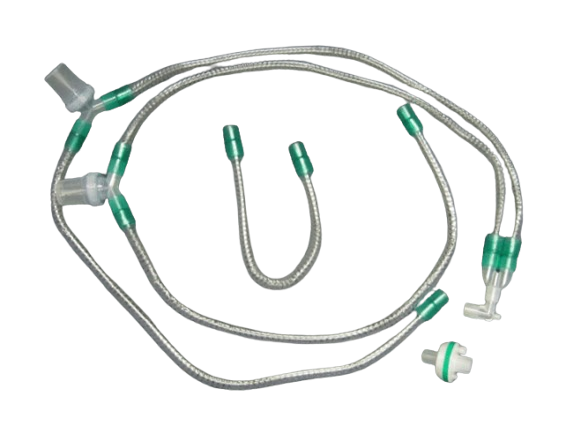

The Ventilator – BreatheCir A10004 Adult 1.8 (Double Limb) is a medical-grade respiratory delivery circuit designed to transport mechanical ventilation gases safely and reliably between critical care ventilators and adult patients. Engineered as a continuous double-limb (dual-leg) configuration, this assembly features smoothbore tubing corridors that combine structural flexibility with exceptionally low airflow resistance. Equipped with dual high-capacity inline water traps and an extra monitoring extension arm, it provides a secure, closed-loop treatment corridor that manages moisture condensation effectively while shielding delicate intensive care equipment from backpressure and fluid contamination.
Key Features
- Double-Limb Circuit Architecture: Configured as a full dual-leg inspiratory and expiratory loop system to support complete closed-circuit respiratory management on advanced ventilators.
- Low-Resistance Smoothbore Interior: Designed with a smooth internal profile that limits gas turbulence, guarantees consistent delivery pressure, and reduces the patient's mechanical work of breathing.
- Dual Condensate Water Traps: Equipped with two self-sealing inline water traps that isolate and collect moisture rain-out, drastically lowering the risk of bacterial accumulation and ventilator fluid invasion.
- Y-Connector with Sampling Port: Incorporates a standard distal Y-piece outfitted with an integrated monitoring cap, enabling convenient connection for capnography (EtCO₂) sampling and gas detection.
- Transparent Anti-Kinking Tubing: Fabricated from soft, resilient, and highly transparent medical polymers that actively resist pinching or kinking while allowing unobstructed visual tracking of circuit conditions.
Technical Specifications
- Product Name & Model: Ventilator – BreatheCir A10004 – Adult 1.8.
- Primary Circuit Length: 1.8 meters (approximately 6 feet).
- Supplemental Link Assembly: Includes an additional 0.4-meter smoothbore limb segment.
- Moisture Management: 2 x integrated adult-sized mechanical water traps.
- Material Matrix: High-clarity, non-toxic, latex-free, and flexible medical-grade polymers.
- Connection Interface: Standard international tapered couplings compliant with ISO structural specifications.
- Sterility & Hygiene Profile: Supplied clean, individually sealed, and rated for single-patient disposable use only (do not autoclave).
- Primary Clinical Settings: Intensive Care Units (ICU), Critical Care Transport, Operating Theatres, and Post-Anesthesia Recovery Bays.
