Description
SPECIFICATIONS:

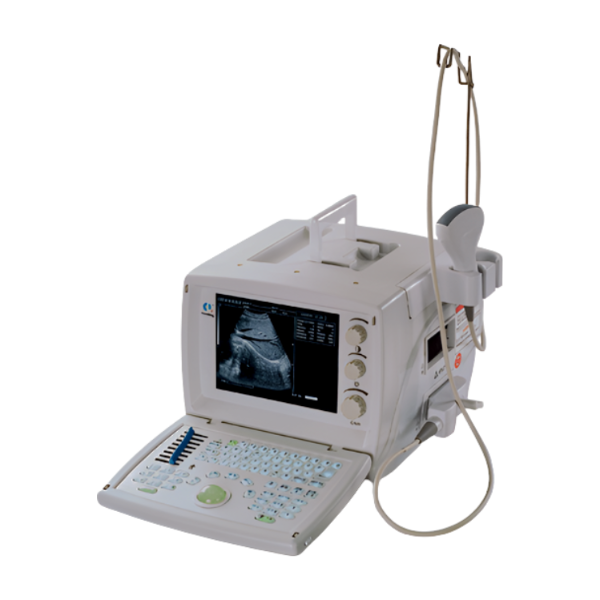

Full digital ultrasound scanner , beamforming technology, probe automatic identification, Gama correction, histogram automatic report generation (normal/OB), scanning angle adjustment (convex), USB 2.0 for real-time picture uploading to PC.
Beam forming - full digital engine with non tortured echo ensuring high definition images.
Dynamic aperture technology making sure of the clear image from near to far field.
- DBF: Digital beam forming.
- FDA: Real-time dynamic aperture.
- DFS: Dynamic frequency Scan.
- DRA: Dynamic receiving apodization.
- DRF: Dynamic receiving focusing
Features:
- 8-segment TGC Adjustment.
- 2 Probe connectors.
- Back-lit keyboard.
- USB 2.0 Available
- Biopsy Bracket
- Multi frequency probe
- 6OR/3.5MHz Convex, application, abdomen, gyn, OB, urology.
Technical:
- Scanning mode: Convex/Linear/Micro-convex.
- Display modes: B,B+B,B+M,M,4B.
- Scanning depth: 240 mm (Max)
- Gray scale: 256
- Cine-loop: 829 frames (Max)
- Image permanent storage: 32 frames.
- Image conversion: up/down, left/right, black/white.
- Local Zoom: 2 times both in real time and frozen.
- Measurement: Distance, circumference, area, volume, EF, rate, heart rate.
- OB Measurement: EDD, GA, FW (BPD, GS, CRL, FL, HC, AC)
- Port: PAL-D video out, USB 2.0, RS-232.
- Monitor: 10"
- Body marks: 40.
- Comment: Date and time, Name, Sex, Age, Doctor, Hospital, Annotation (whole screen comment input).
- Wide application: abdominal, OB/GYN, urology, cardiology, small parts examination, etc.
- Power supply: 110V-130V/220V-240V, 50-60Hz.

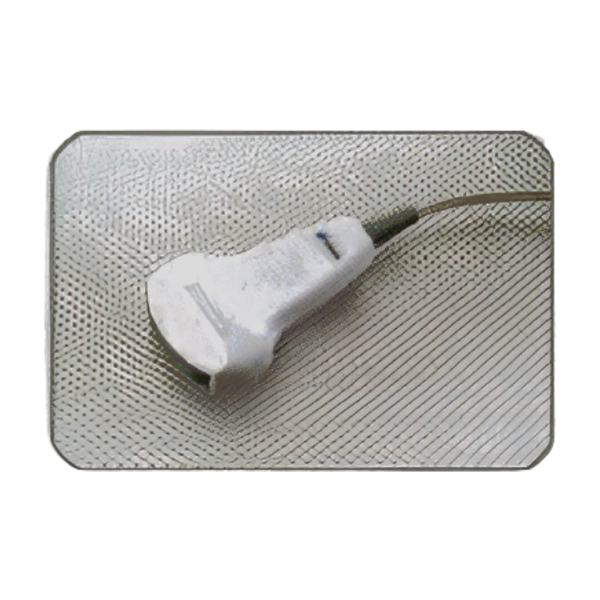

- Standard configuration: 60R/3.5MHz Convex.
