Description
SPECIFICATIONS:

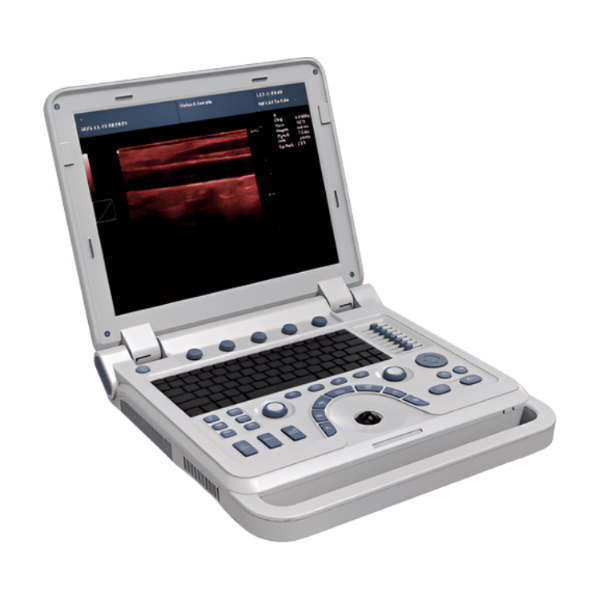

CMS600P2 Plus B-Ultrasound Diagnostic System with high resolution and PW doppler. The system is mainly suitable for the ultrasonic examination of abdomen, obstetrics and gynecology, small organs, urology, etc. It adopts advanced image processing technology (such as digital beam forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement.
Functions:
- 15" TFT display.
- Portable design.
- Built-in lithium battery, the device can work continuously for up to 2hour after full charged.
- Store the patient data by 128g hard disk.
- Advanced digital beam forming (DBF) technology.
- Real time dynamic aperture (RDA)
- Tissue harmonic imaging (THI)
- Pulse wave doppler (PW)
- Space compounding imaging.
- Working mode: B, 2B, 4B, B/M, M, PW.
- Software packages: routine, abdomen, obstetrics, gynecology, vessels, small organ, urology, etc.
Safety:
- Type of protection against electric shock: class I equipment. Degree of protection against electric shock: type BF applied part.
- Operating voltage: AC 100 V - 240 V.
- Operating frequency: 50Hz/60Hz.
- Power consumption: ≤100 VA
Performance:
- Scan depth: 250 mm max.
- Extended interface: two probe interfaces, two USB interfaces, one video interface, one S-Video interface, RJ-45 interface, one VGA interface.
- Type of probe: Convex probe, Micro convex probe, trans-rectal probe, trans-vaginal probe, linear probe.
Accessories included:
- x1 abdominal probe 3.5 MHz
- x1 user manual
- x1 power cord
- x1 adapter
