Description
SPECIFICATION:

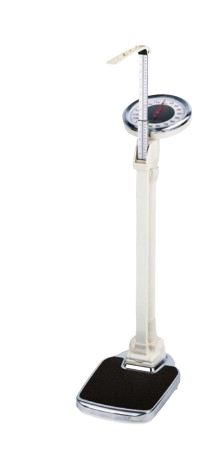

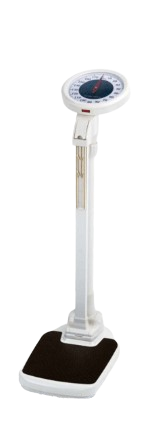

The JSA-180 Mechanical Physician Column Scale with Height Rod is a heavy-duty, professional-grade medical assessment system engineered to provide simultaneous height and weight readings in one station. Operating purely via mechanical spring and lever technology, this column scale features a large, powerless analogue dial display that makes it ideal for clinics, school health rooms, occupational health stations, and rural health outreach programs with no access to electricity. Built with a rugged metal frame, an anti-slip safety mat, and a unique foldable column, it seamlessly combines stationary clinical durability with easy storage and mobile transport.
Key Features
- 100% Battery-Free Mechanical Reliability: Powered entirely by spring scale mechanics, requiring no electricity, batteries, or charging adapters for zero technical downtime.
- Simultaneous Height & Weight Station: Outfitted with an integrated, telescoping height measurement rod to deliver concurrent tracking for fast patient indexing and BMI calculations.

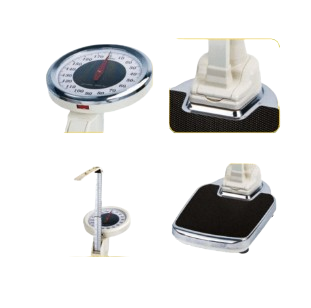

- High-Contrast Analogue Dial: Features an extra-large, easily read circular dial display (20.5 cm diameter) that delivers clear and immediate weight readings at a single glance.
- Foldable Column Space-Saver: Built with a specialized mechanical hinge, allowing the vertical column to fold down compactly for low-profile storage or hassle-free vehicle transport.
- Anti-Slip High-Traction Base: Designed with a low-profile platform topped with a textured, anti-slide rubber mat to guarantee stable footing and complete patient safety.
Technical Specifications
- Model System: JSA-180 (Mechanical Personal Column Scale).
- Maximum Weight Capacity: Rated up to 180 kg total weight threshold.
- Weight Graduation Resolution: Standard 1 kg incremental divisions across the full range.
- Height Measurement Range: Extends continuously from a minimum of 84 cm up to a maximum of 210 cm.
- Material Composition: Robust cast iron/steel mechanical chassis with an aluminum height rod frame and an ABS plastic dial housing protective shell.
- Selectable Measuring Units: Configurable model tracking variations for metric (kg) or dual-metric/imperial (kg/lb) readouts.
-
Physical Proportions:
- Assembled Footprint Dimensions: Approximately 61.3 cm (L) × 31.9 cm (W) × 105.8 cm (H).
- Device Net Weight: 9.52 kg for highly manageable mobile handling.
- Quality Certifications: Fully compliant with CE Quality Standards and RoHS environmental safety marks.
- Primary Clinical Settings: General Practice Clinics, Public Schools, Occupational Health Screening Bays, and Mobile Rural Healthcare Outposts.
