SPECIFICATIONS:

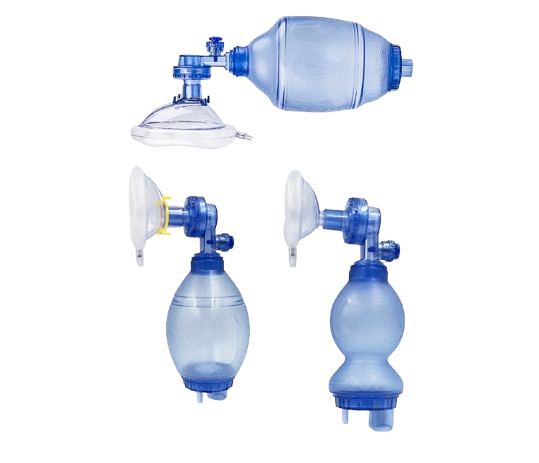

The Manual PVC Resuscitators – CP are high-quality, dependable medical ventilation systems engineered for emergency resuscitation and respiratory support. Constructed from robust, medical-grade polyvinyl chloride (PVC), these bag-valve-mask (BVM) units provide responsive tactile feedback to ensure precise manual ventilation control. Available in three distinct, patient-specific sizes—Infant, Paediatric, and Adult—they deliver highly targeted stroke volumes and feature integrated safety valves to manage patient airway pressure safely during critical care interventions.
Key Features
- Ergonomic Tactile Feedback: Constructed from responsive PVC that ensures fast recoil and optimal tactile sensitivity, giving clinicians direct control over ventilation pressure and rhythm.
- Integrated Safety Pressure Relief: Outfitted with specialized pressure-limiting valves tailored to each patient demographic to protect delicate lung structures from barotrauma.
- High-Concentration Oxygen Delivery: Equipped with high-capacity bag reservoirs capable of delivering supplement oxygen concentrations of 85% or greater under standard clinical flow rates.
- Standardized System Connectivity: Features a universal ISO5356-1 (Ø22/15mm) patient connector to ensure absolute compatibility with standard clinical airway attachments, tubes, and filters.
- Extreme Environmental Resilience: Engineered to operate reliably across a broad thermal range from -18⁰C up to +50⁰C, making them suitable for unpredictable emergency and field environments.
Technical Specifications
| Specification | Infant | Paediatric | Adult |
|---|---|---|---|
| Mask Compatibility | Mask #1 | Mask #2 | Mask #5 |
| Target Body Weight | ≤ 10 kg | 10 kg – 30 kg | > 40 kg |
| Stroke Volume | ≥ 20 ml | ≥ 150 ml | ≥ 600 ml |
| Resuscitator Bag Volume | 280 ml ± 100 ml | 550 ml ± 200 ml | 1500 ml ± 200 ml |
| Dimensions (L x Diameter) | 135 mm x 75 mm | 146 mm x 100 mm | 212 mm x 131 mm |
| Pressure Limiting Valve | 30 cmH₂O - 45 cmH₂O | 35 cmH₂O - 50 cmH₂O | 40 cmH₂O - 60 cmH₂O |
| Patient Valve Dead Space | ≤ 7 ml | ≤ 20 ml | ≤ 65 ml |
| Airflow Resistance (Insp/Exp) | ≤ 5 cmH₂O (at 50 l/min) | ≤ 5 cmH₂O (at 50 l/min) | ≤ 5 cmH₂O (at 50 l/min) |
| Bag Reservoir Volume | 1600 ml | 1600 ml | 2000 ml |
| Patient Connector Port | ISO5356-1: Ø22/15 mm | ISO5356-1: Ø22/15 mm | ISO5356-1: Ø22/15 mm |
| Oxygen Output Profile (≥85%) | Vt: 60ml, 20BPM, 15 l/min | Vt: 150ml, 25BPM, 15 l/min | Vt: 600ml, 12BPM, 15 l/min |
| Operating Conditions | -18⁰C ~ +50⁰C (15% ~ 95% r.h.) | -18⁰C ~ +50⁰C (15% ~ 95% r.h.) | -18⁰C ~ +50⁰C (15% ~ 95% r.h.) |
| Storage Parameters | -40⁰C ~ +60⁰C (40% ~ 95% r.h.) | -40⁰C ~ +60⁰C (40% ~ 95% r.h.) | -40⁰C ~ +60⁰C (40% ~ 95% r.h.) |
