Description
SPECIFICATIONS:

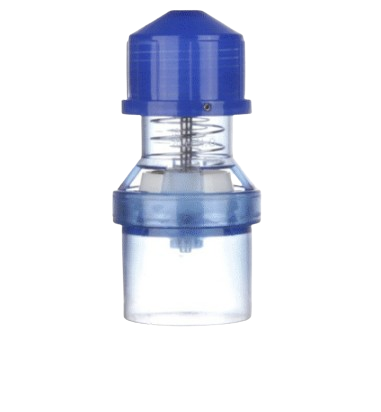

The CP Series Positive End-Expiratory Pressure (PEEP) Valves are high-precision medical flow-control devices engineered to maintain continuous positive pressure within a patient’s airway at the end of an exhalation cycle. By preventing the total collapse of lung alveoli, these valves optimize gas exchange, improve arterial oxygenation, and help recruit functional lung volume during manual ventilation. Available in two distinct, spring-loaded clinical calibrations—the 2–10 cmH₂O variant for neonatal/pediatric care and the 5–20 cmH₂O variant for adult critical care, these durable, translucent valves fit seamlessly onto standard manual resuscitator patient valves and expiratory diverters.
Key Features
- Precision Calibrated Pressure Ranges: Available in two specialized pressure settings—a sensitive 2–10 cmH₂O range for precise pediatric/neonatal ventilation control and a broader 5–20 cmH₂O range for adult pulmonary recruitment.
- Stepless Adjustable Dial: Features a smooth, rotating adjustment cap with distinct numerical graduation markers, allowing clinicians to finely tune and lock in the exact required baseline PEEP pressure.
- Low-Resistance Internal Spring: Built with a high-resilience, calibrated internal tension mechanism that responds instantly to the patient’s expiratory flow without increasing the mechanical workload of breathing.
- Crystal-Clear Structural Monitoring: Molded from transparent, medical-grade polymer to provide clinicians with unobstructed, 360-degree visual tracking of the internal valve movement and airway hygiene.
- Universal Friction-Fit Connection: Tailored to strict ISO structural specifications to provide an airtight, edge-to-edge seal with standard 30mm resuscitator expiratory connectors and diverter adapters.
Technical Specifications
| Specification | PEEP Valve 2–10 cmH₂O (CP) | PEEP Valve 5–20 cmH₂O (CP) |
|---|---|---|
| Product Line Code | PEEP-CP-PEDI | PEEP-CP-ADULT |
| Adjustable Range | 2 to 10 cmH₂O | 5 to 20 cmH₂O |
| Primary Patient Demographic | Neonatal, Infant, and Pediatric | Adolescent and Adult |
| Material Composition | Heavy-duty Polycarbonate & Silicone | Heavy-duty Polycarbonate & Silicone |
| Internal Tension Spring | Calibrated Stainless Steel (Low-Tension) | Calibrated Stainless Steel (High-Tension) |
| Connector Dimension | 30 mm ID (ISO 5356-1 compliant) | 30 mm ID (ISO 5356-1 compliant) |
| Sterility & Care Rating | Supplied Non-Sterile (Single-patient use) | Supplied Non-Sterile (Single-patient use) |
| Primary Clinical Settings | Neonatal ICU, Pediatric Wards, EMS | Emergency Rooms, Adult ICU, Trauma Bays |
