Description
SPECIFICATIONS:

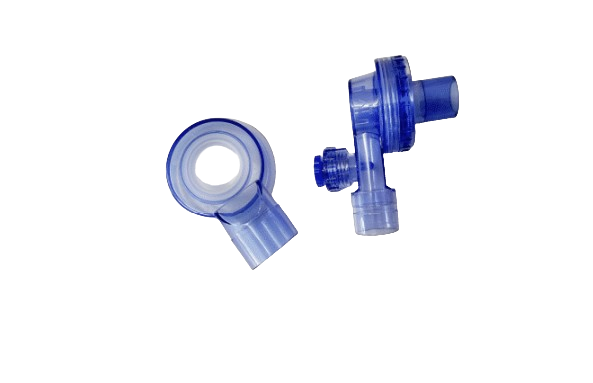

The Patient Valve with 60cmH₂O Pop-Off Safety Relief (CP Series) is a high-precision, medical-grade airway management component engineered specifically for adult manual resuscitator (Bag-Valve-Mask / BVM) systems. Stationed directly at the patient interface between the ventilation bag and the resuscitation mask or endotracheal tube, this high-efficiency valve assembly completely isolates inspiratory and expiratory airflow loops to prevent carbon dioxide rebreathing. Constructed from robust, translucent medical-grade polycarbonate, this assembly features an integrated 60 cmH₂O pressure-limiting "pop-off" safety valve that guards against pulmonary barotrauma, maintaining safe manual therapeutic airflow while protecting adult lung structures from excessive mechanical pressure.
Key Features
- Calibrated 60 cmH₂O Pressure Limitation: Integrated with a precision-tuned, spring-loaded safety relief ("pop-off") valve calibrated specifically to adult parameters to automatically vent over-pressure spikes and minimize barotrauma risk.
- Advanced Non-Rebreathing Isolation: Outfitted with high-sensitivity silicone internal check valves that create strict, one-way directional airflow loops, ensuring the patient never inhales expired carbon dioxide.
- Crystal-Clear Structural Monitoring: Molded from premium, high-transparency medical polymer to provide clinicians with unobstructed, 360-degree real-time visual assessment of internal valve movement, moisture levels, or airway cleanliness.
- Low-Resistance Airflow Density: Engineered with aerodynamically optimized chambers that offer exceptionally low flow resistance during both mechanical bag compression and patient exhalation, reducing patient work of breathing.
- Universal ISO Standard Connection: Tailored to strict structural specifications to provide an airtight, edge-to-edge friction-fit seal with standard 22mm/15mm ISO-compliant resuscitator bags, masks, and PEEP valve adapters.
Technical Specifications
- Device Compatibility: Engineered specifically as a replacement patient valve for CP-Series Adult Manual PVC or Silicone Resuscitator lines.
- Material Composition: Heavy-duty, non-toxic, and latex-free clear polycarbonate housing paired with medical-grade liquid silicone rubber diaphragms.
- Pressure Safety Rating: Built-in manual override pop-off valve preset to a 60 cmH₂O (±10 cmH₂O) adult pressure-limiting threshold.
- Connector Port Dimensions: ISO 5356-1 compliant standard respiratory taper (22mm Male outer profile / 15mm Female inner profile at the patient connection side).
- Sterility & Care Rating: Supplied non-sterile in hygienically sealed packaging (Available in specialized single-use disposable or autoclavable reusable variants depending on system code).
- Primary Care Settings: Emergency Medical Services (EMS), Adult Trauma Units, Intensive Care Units (ICU), and Operating Rooms.
