Description
SPECIFICATIONS:

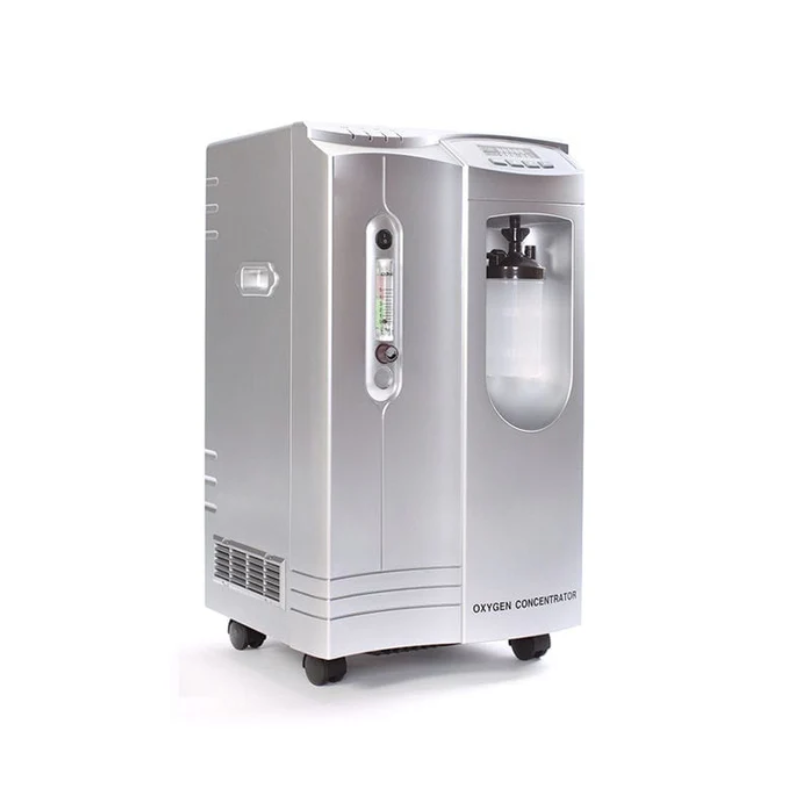

The V10-W-NS (Neb) is a premium, dual-purpose high-capacity medical oxygen concentrator engineered to deliver a continuous, high-flow therapeutic oxygen stream of up to 10 Litres Per Minute (LPM). Utilizing robust Pressure Swing Adsorption (PSA) molecular sieve technology, it maintains a highly stable and therapeutic concentration of 93% (±3%) across its entire flow range. Upgraded for comprehensive respiratory care, this specialized model features an integrated oxygen-driven nebuliser module. This enables clinicians and caregivers to deliver aerosolized medications directly using the machine’s internal medical air pressure, without requiring a secondary standalone nebuliser unit.
Key Features
- Dual-Function Oxygen & Nebuliser Care: Features a dedicated, secondary nebulisation port alongside the standard oxygen outlet. This allows high-purity oxygen therapy and aerosol medication delivery to be managed seamlessly by a single device.
- High-Flow 10L Output Capacity: Delivers an adjustable continuous flow rate from 0.5 up to 10 L/min, making it perfectly suited for higher-acuity step-down care, respiratory failure management, and chronic obstructive pulmonary diseases (COPD).
- Advanced PSA Molecular Sieve Technology: Combines high-durability molecular sieve beds with a water- and dust-proof protective tank design. This proactively guards the filter material against structural contamination, ensuring consistent long-term purity.
- Long-Life, Continuous Work Cycle: Features a large internal chassis architecture optimized for ultra-fast component cooling, supporting the rigorous 24/7 continuous duty cycle required in fast-paced clinical environments.
- Intuitive LCD Monitoring Interface: Outfitted with a high-contrast LCD screen that tracks running hours and critical operational parameters to streamline preventative maintenance scheduling.
- Active Triple-Event Alarm System: Equipped with continuous automated self-testing loops. It fires immediate audible and visual alerts for the three most critical safety events: power failure, low oxygen purity output (<82%), and system overheating (>46°C).
- Whisper-Quiet Operation: Runs on a premium, durable internal compressor rated at ≤55 dB(A), providing non-disruptive, clinical-grade therapy throughout the day or night.
Technical Specifications
- Flow Range Range: 0.5 – 10.0 L/min
- Oxygen Purity Efficiency: 93% ± 3% (Continuous at all flows)
- Nebulisation Rate: ≥ 0.2 mL/min
- Technology: Pressure Swing Adsorption (PSA) molecular sieve
- Outlet Pressure Output: 0.04 – 0.08 MPa
- Operating Noise Level: ≤ 55 dB(A)
- Electrical Requirements: Mains Powered (AC 230V / 50Hz)
- System Rated Lifespan: Up to 20,000 hours / 5 Years
- Structural Certification: CE Certified
