SPECIFICATIONS:

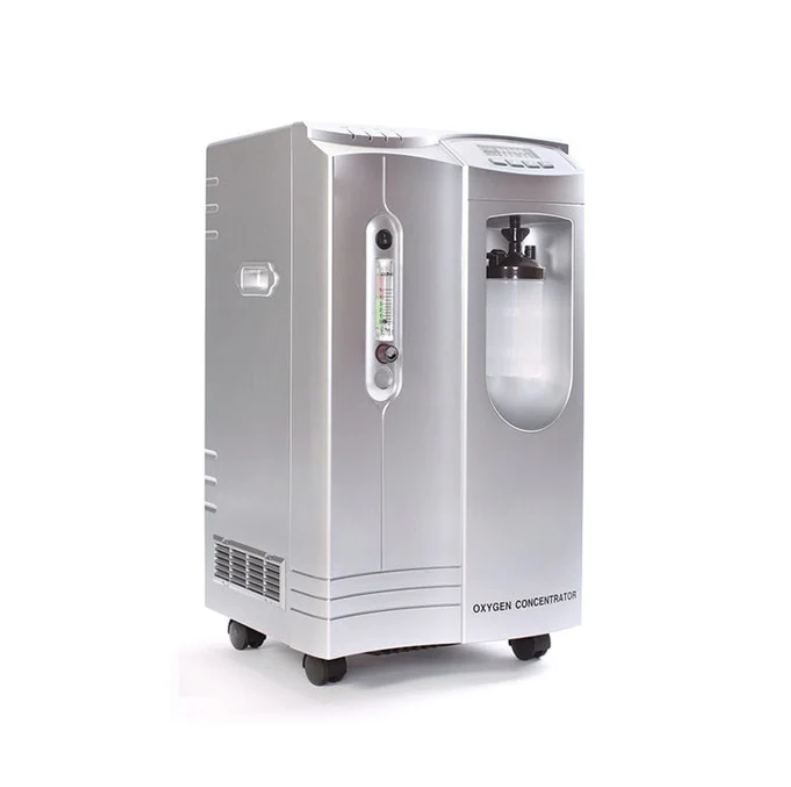

The V10-W-NS is a premium, high-capacity medical oxygen concentrator engineered to deliver a continuous, high-flow therapeutic oxygen stream of up to 10 Litres Per Minute (LPM). Utilizing robust Pressure Swing Adsorption (PSA) molecular sieve technology, it extracts pure oxygen directly from ambient room air, maintaining a highly stable and therapeutic concentration of 93% (±3%) across its entire flow range. [
Designed specifically for hospitals, clinics, intensive care units (ICUs), and high-demand home care, the V10-W-NS provides a reliable fixed-station oxygen source that completely eliminates dependency on the logistical burdens of traditional oxygen cylinder supply chains.
Key Features
- High-Flow 10L Output Capacity: Delivers an adjustable continuous flow rate from 0.5 up to 10 L/min. This makes it perfectly suited for higher-acuity step-down care, respiratory failure management, and high-demand oxygen therapies.
- Advanced PSA Molecular Sieve Technology: Combines high-durability molecular sieve beds with a water- and dust-proof protective tank design. This proactively guards the filter material against structural contamination, ensuring consistent long-term purity.
- Long-Life, Continuous Work Cycle: Features a large internal chassis architecture optimized for ultra-fast component cooling, supporting the rigorous 24/7 continuous duty cycle required in fast-paced clinical environments.
- Intuitive LCD Monitoring Interface: Outfitted with a high-contrast LCD screen that tracks running hours and critical operational parameters to streamline preventative maintenance scheduling.
- Active Triple-Event Alarm System: Equipped with continuous automated self-testing loops. It fires immediate audible and visual alerts for the three most critical safety events: power failure, low oxygen purity output (<82%), and system overheating (>46°C).
- Whisper-Quiet Operation: Runs on a premium, durable internal compressor rated at ≤55 dB(A), providing non-disruptive, clinical-grade therapy throughout the day or night.
Technical Specifications
- Flow Range Range: 0.5 – 10.0 L/min
- Oxygen Purity Efficiency: 93% ± 3% (Continuous at all flows)
- Technology: Pressure Swing Adsorption (PSA) molecular sieve
- Outlet Pressure Output: 0.04 – 0.08 MPa
- Operating Noise Level: ≤ 55 dB(A)
- Electrical Requirements: Mains Powered (AC 230V / 50Hz)
- System Rated Lifespan: Up to 20,000 hours / 5 Years
- Structural Certification: CE Certified
