Description
SPECIFICATIONS:

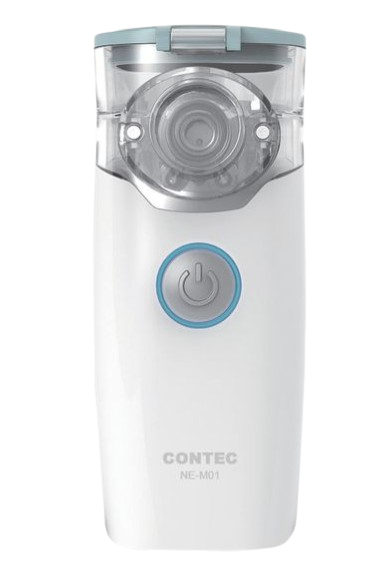

The Contec NE-M01 Portable Mesh Nebulizer is a compact, lightweight, and highly advanced medical device engineered for the effective treatment of respiratory conditions such as asthma, allergies, and bronchitis. Utilizing state-of-the-art ultrasonic mesh technology, a piezoelectric ceramic element vibrates at high frequencies to deform a micro-plate, instantly atomizing liquid medication into an ultra-fine mist. Designed for both adults and children, its virtually silent operation and handheld convenience make it the perfect solution for clinical, hospital, and home-care settings.
Key Features
- Advanced Vibrating Mesh Technology: Utilizes high-frequency piezoelectric vibration to deform a micro-plate, generating a consistent, highly absorbable microscopic mist.
- Ultra-Quiet & Discretely Portable: At only 120 mm tall and ergonomically designed, its low-noise and lightweight footprint allows for stress-free treatment, even while children are asleep.
- Intelligent Auto-Safety Shutdown: Features integrated low-battery detection alongside an automated safety switch that shuts off power the moment the liquid medication chamber is empty.
- Flexible Dual-Power Options: Operates efficiently anywhere via two standard AA alkaline batteries for true cordless mobility, or through a convenient 5V power adapter line.
- One-Button Simple Operation: Streamlined user interface allows for immediate, hassle-free therapeutic delivery at the push of a single button.
Technical Specifications
- Model System: NE-M01 Portable Ultrasonic Mesh Nebulizer.
- Power Requirements: Dual supply via 2 x AA Alkaline Batteries (DC 3V) or DC 5V, 1A Power Adapter.
- Power Consumption: Rated power under 2W / Input power < 3 VA.
- Ultrasonic Frequency: Operates at approximately 110kHz to 140kHz.
- Nebulization Velocity: High performance flow rate of ≥ 0.25 mL/min.
- Chamber Liquid Volume: Accommodates a maximum capacity of 8 mL down to a minimum of 0.5 mL.
- Particle Size Distribution: Mass Median Aerodynamic Diameter (MMAD) of approximately 5 µm, ensuring no less than 90% of atomized particles drop below the 5 µm target threshold.
- Operational Lifespan: Up to 90 minutes of continuous runtime on fresh batteries, with a specialized nebulizing head lifespan rated for 180 hours.
- Safety Classifications: Rated as Class II electrical safety with Type BF applied part shock protection and IP22 moisture ingress rating.
- Physical Proportions: Extremely small form factor measuring roughly 67.4 mm (L) × 48.5 mm (W) × 116.9 mm (H).
