Description
SPECIFICATIONS:

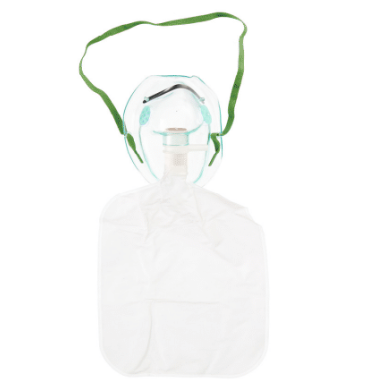

The HIC High Concentration Oxygen Masks (Non-Rebreathers) are essential, medical-grade respiratory consumables engineered to deliver high-fractional concentrations of oxygen (FiO₂ up to 90–100%) to spontaneously breathing patients. Available in Adult and Child configurations, these systems feature an integrated oxygen reservoir bag paired with high-efficiency, one-way check valves. This structural layout channels pure oxygen from the reservoir into the mask during inhalation while successfully diverting exhaled gases into the surrounding environment, making them a vital clinical intervention for severe hypoxia, trauma stabilization, and emergency resuscitation.
Key Features
- High-Concentration Oxygen Delivery: Engineered to deliver elevated therapeutic oxygen concentrations (FiO₂ matching 85% to 100% under an optimal 10–15 L/min flow rate) to rapidly reverse severe respiratory distress.
- One-Way Directional Valve Safety: Outfitted with low-resistance silicone flaps over the mask ports and reservoir inlet that create strict directional loops, preventing the rebreathing of expired carbon dioxide while permitting fresh ambient air entry if supply is disrupted.
- High-Capacity Oxygen Reservoir Bag: Features a lightweight, rapidly responsive gas reservoir that ensures a continuous pool of pure oxygen is readily available during the peak inspiratory flow cycle.
- Anatomical Elongated Configuration: Designed with an elongated teardrop profile that conforms smoothly over the nasal bridge and chin, providing a secure, comfortable edge seal for both adult and pediatric facial structures.
- Adjustable Nose Clip & Elastic Fastener: Equipped with a malleable aluminum nose piece and a soft, latex-free elastic headband that allows clinicians to secure a custom, low-leakage fit without causing focal pressure points.
Technical Specifications
| Specification Dimension | Adult HIC Mask | Child HIC Mask |
|---|---|---|
| Product Line Code | HIC-MSK-ADULT | HIC-MSK-CHILD |
| Target Demographic | Adolescent and Mature Adults | Toddlers, Children, and Small Youth |
| Delivered Oxygen Conc. | 85% to 100% (FiO₂ 0.85 – 1.0) | 85% to 100% (FiO₂ 0.85 – 1.0) |
| Recommended Flow Rate | 10 to 15 L/min (or until bag remains inflated) | 10 to 15 L/min (or until bag remains inflated) |
| Mask / Reservoir Material | Non-toxic, medical-grade clear PVC | Non-toxic, medical-grade clear PVC |
| Valve Membrane Matrix | High-sensitivity Liquid Silicone Rubber | High-sensitivity Liquid Silicone Rubber |
| Supply Tubing Profile | Star-lumen kink-resistant tubing (approx. 2.1m) | Star-lumen kink-resistant tubing (approx. 2.1m) |
| Sterility & Disposability | Clean, Non-Sterile (Single-use disposable) | Clean, Non-Sterile (Single-use disposable) |
- Kink-Resistant Star-Lumen Tubing: Supplied complete with a universal-fit oxygen supply line featuring an internal star-shaped geometry that guarantees uncompromised gas flow even if the tubing is accidentally crushed or bent.
- Universal Connector Interface: Outfitted with a standard tapered funnel connector that hitches securely onto all conventional medical flowmeters, concentrators, and wall-mount oxygen outlets.
- Primary Clinical Settings: Emergency Departments, Ambulance Services (EMS), Trauma Bays, Post-Anesthesia Care Units (PACU), and Acute Medical Wards.
