Description
SPECIFICATIONS:

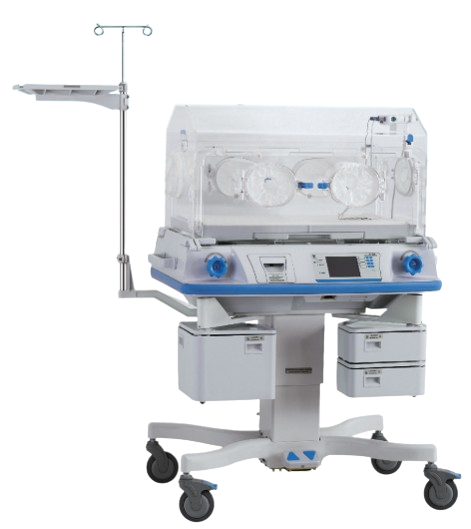

The YP-2000 is a premium, microcomputer-controlled infant incubator engineered to create a highly stable, secure, and nurturing microclimate for neonates, premature infants, and low-birth-weight babies. Combining advanced thermo-regulation with active humidity and oxygen management, the YP-2000 optimizes clinical workflows while ensuring ultimate patient safety and comfort in high-demand Neonatal Intensive Care Units (NICUs).
Key Features
- Dual Servo-Controlled Microclimate Modes: Features an intelligent microprocessor that supports both Air Mode (ambient temperature regulation) and Baby Mode (servo-controlled skin temperature tracking).
- Integrated Humidity & Oxygen Servo Control: Equipped with automated control loops that monitor and adjust relative humidity and oxygen concentration levels to maintain the exact prescriptive environments needed for delicate lungs and skin.
- Double-Walled Hood with 360° Access: Designed with front and rear access doors and a double-walled acrylic canopy. It incorporates a unique front-and-back air circulation system that eliminates cold spots and maintains thermal stability even when doors are open.
- Smart Data Logging & LCD Interface: A dedicated LCD screen allows clinical teams to record, monitor, and chart trends, providing graphical data logs directly on the interface.
- Advanced Ergonomics & Infection Control: Features an embedded, plug-and-play integrated sensor module alongside a convenient drawer-type water reservoir. The entire water system can be detached for high-temperature and high-pressure steam sterilization to eliminate bacterial growth.
- Smooth Mechanical Adjustments: Features electronic height adjustment to easily configure the working level of the unit, along with a smooth, step-less electronic tilting mechanism to adjust the inclination of the bassinet.
- Diagnostic & Structural Conveniences: Includes an integrated X-ray cassette tray nested directly under the baby bassinet to take radiographs without disturbing the infant, driven by an ultra-quiet, low-noise brushless DC motor.
Technical Specifications
- Power Supply: AC 220V–230V, 50Hz | Power Consumption: 1300VA
- Air Temperature Control Range: 25.0°C – 37.0°C (Override option up to 39.0°C)
- Skin/Baby Temperature Control Range: 34.0°C – 37.0°C (Override option up to 38.0°C)
- Humidity Control Range: 0% – 90% RH (Servo-controlled)
- Oxygen Setting Range: 20% – 60% (Servo-controlled)
- Data Output Ports: RS-232 connector for external patient monitor networking and hospital data systems.
- Alarms: Comprehensive fail-safe audio-visual alert suite covering over-temperature, temperature deviations, sensor faults, fan failures, and power outages.
