Description
SPECIFICATIONS:

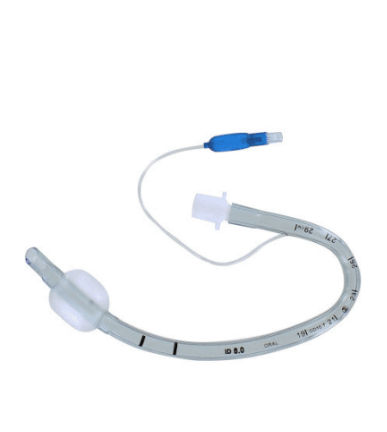

The Cuffed Endotracheal Tubes are premium, medical-grade airway management consumables engineered to establish and maintain a secure, patent airway for patients requiring mechanical ventilation, anesthesia, or critical respiratory support. Constructed from transparent, biocompatible medical polyvinyl chloride (PVC), these tubes offer optimal structural flexibility while remaining highly resistant to kinking. Equipped with a high-volume, low-pressure (HVLP) inflatable cuff, this specific product line is optimized for safeguarding the airway against aspiration and preventing gas leakage during positive pressure ventilation, making them the standard choice for adolescent and adult clinical applications, as well as modern pediatric airway management.
Key Features
- Full Comprehensive Sizing Matrix: Available in a continuous run of 15 distinct sizes ranging from pediatric 2.0mm up to large adult 9.0mm (including all 0.5mm half-sizes) to ensure an exact anatomical match for any patient demographic.
- High-Volume Low-Pressure (HVLP) Cuff: Designed with a specialized micro-thin cuff matrix that creates a reliable, edge-to-edge structural seal against the tracheal wall with minimal mucosal pressure, reducing the risk of tissue necrosis.
- Kink-Resistant Thermosensitive PVC: Fabricated from advanced, non-toxic PVC that is firm at room temperature for easy insertion, yet softens at body temperature to conform safely to the patient’s airway anatomy.
- Ergonomic Pilot Balloon Assembly: Features a dedicated inflation line equipped with a high-sensitivity pilot balloon and a spring-loaded one-way Luer valve, allowing clinicians to continuously monitor cuff pressure.
- Full-Length Radiopaque Indicator: Features a highly visible, continuous radiopaque line embedded down the entire length of the tube wall to facilitate fast, accurate placement verification under X-ray imaging.
- Atraumatic Murphy Eye & Tip: Engineered with a smooth, polished bevelled tip and a lateral Murphy eye emergency port to ensure continuous, uncompromised gas exchange even if the primary distal tip becomes occluded.
- Standardized 15mm Connector: Prefitted with a universal, rigid 15mm male connector block that provides an airtight, friction-fit link to standard breathing circuits, manual resuscitators, and ventilator loops.
Technical Specifications
| Internal Diameter (ID) | Outer Diameter (OD) | Nominal Total Length | Target Patient Profile (General Reference Only) |
|---|---|---|---|
| Size 2.0 | 3.3 mm | 140 mm | Specialized Pediatric Care |
| Size 2.5 | 4.0 mm | 150 mm | Neonates / Full-Term Newborns |
| Size 3.0 | 4.7 mm | 170 mm | Infants (0 – 6 months) |
| Size 3.5 | 5.3 mm | 190 mm | Infants / Toddlers (6 – 12 months) |
| Size 4.0 | 5.9 mm | 210 mm | Early Paediatric (1 – 2 years) |
| Size 4.5 | 6.5 mm | 230 mm | Paediatric (2 – 4 years) |
| Size 5.0 | 7.1 mm | 250 mm | Paediatric (4 – 6 years) |
| Size 5.5 | 7.7 mm | 280 mm | School-Age Children (6 – 8 years) |
| Size 6.0 | 8.4 mm | 290 mm | Pre-Adolescent (8 – 10 years) |
| Size 6.5 | 9.1 mm | 300 mm | Adolescent / Small Adult Female |
| Size 7.0 | 9.7 mm | 310 mm | Standard Adult Female |
| Size 7.5 | 10.4 mm | 310 mm | Large Adult Female / Small Adult Male |
| Size 8.0 | 11.0 mm | 320 mm | Standard Adult Male |
| Size 8.5 | 11.7 mm | 330 mm | Large Adult Male |
| Size 9.0 | 12.3 mm | 330 mm | Extra-Large Adult Male / Specialized Care |
- Material Composition: 100% Medical-grade polyvinyl chloride (PVC), completely latex-free, pyrogen-free, and DEHP-free.
- Connection Standards: Standardized 15mm male conical connector port fully compliant with ISO 5356-1.
- Cuff Mechanism: High-volume low-pressure (HVLP) inflation profile with integrated check-valve pilot balloon.
- Sterility Rating: Supplied Sterile (Individually blister-packed, ethylene oxide [EO] gas sterilized, single-use only).
- Primary Clinical Settings: Operating Theatres, Intensive Care Units (ICU), Emergency Departments, and Pre-Hospital Critical Care Transport.
