Description
SPECIFICATIONS:

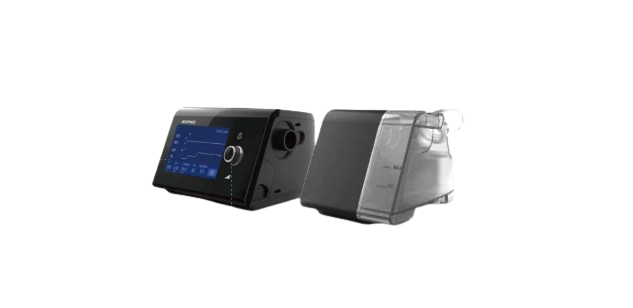

The BV30ST Pro is a premium, high-performance bi-level positive airway pressure (BiPAP) monitor and non-invasive ventilator designed for patients requiring advanced respiratory support. Engineered to treat Obstructive Sleep Apnea (OSA), Central Sleep Apnea (CSA), COPD, and chronic respiratory insufficiency, the BV30ST Pro delivers dual-pressure support (IPAP/EPAP) that synchronizes perfectly with the patient's breathing. It transitions smoothly between home-care therapy and hospital clinical environments.
Key Features
- Comprehensive Multi-Mode Ventilation: Supports multiple clinical therapeutic configurations—including CPAP, S (Spontaneous), T (Timed), ST (Spontaneous/Timed), and VGPS (Volume Guaranteed Pressure Support)—allowing customized treatment plans.
- Intelligent Breath Synchronization: Utilizes an advanced control system that monitors breathing patterns in real time, automatically and rapidly switching pressures according to inhalation and exhalation efforts to prevent therapeutic fighting.
- Interactive 4.3" Colour Touchscreen: Features a high-resolution, user-friendly capacitive touchscreen with a flexible navigator knob. The premium UI displays multi-theme monitored parameters on a single screen for quick clinical review.
- Integrated Humidifier & AS-Dry Technology: Includes an integrated heated humidification chamber with 5-step adjustment to reduce airway dryness and irritation. Built-in AS-Dry technology automatically dries the circuit and mask post-therapy to eliminate moisture buildup and bacterial growth.
- Portable, Lightweight Profile: Weighing just 0.82 kg (main unit) and 1.26 kg with the humidifier attached, its innovative detachable design makes it exceptionally easy to carry for travel or ambulatory use.
- Whisper-Quiet Operation: Features an ultra-quiet blower motor operating at under 30 dB, ensuring a quiet environment for improved sleep quality for both the patient and bed partner.
Technical Specifications
- Ventilation Modes: CPAP, S, T, ST, VGPS
- IPAP Pressure Range: 6 – 30 hPa (cmH₂O)
- EPAP Pressure Range: 4 – 25 hPa (cmH₂O)
- Target Tidal Volume Support: 200 ml – 1,500 ml
- Respiratory Rate Range: 5 – 40 BPM (Backup frequency: 10 BPM)
- Inspiratory Time (Ti): 0.3s – 4.0s (Ti Min: 0.5s – 4.0s | Ti Max: 1.0s – 4.0s)
- Trigger & Cycle Sensitivity Levels: 1 – 6
- Rise Slope Settings: 1 – 6
- Monitored Telemetry: Real-time tracking of Pressure, Tidal Volume (Vt), Minute Ventilation (Min Vent), Respiratory Rate, and Air Leakage.
- Data Storage: High-capacity SD Card data logging for clinical sleep compliance tracking.
