Description
SPECIFICATIONS:

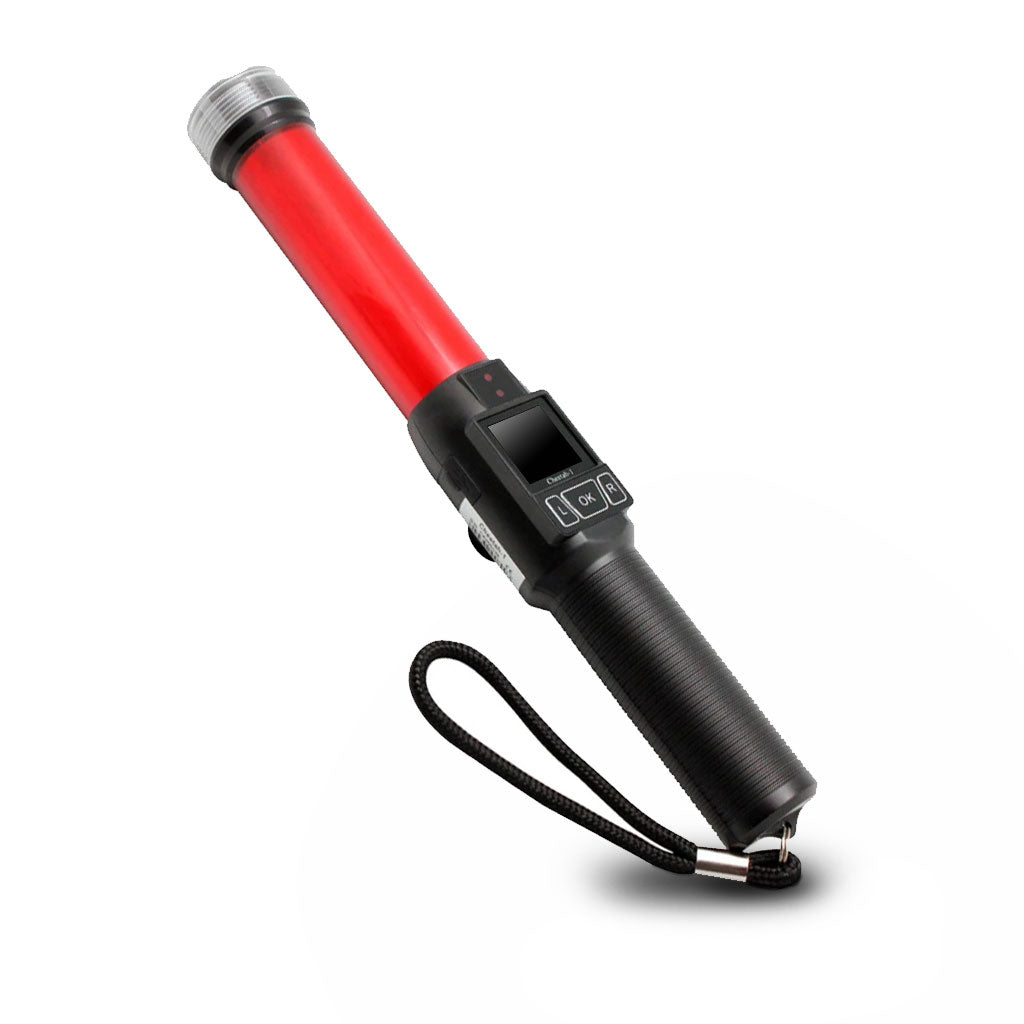

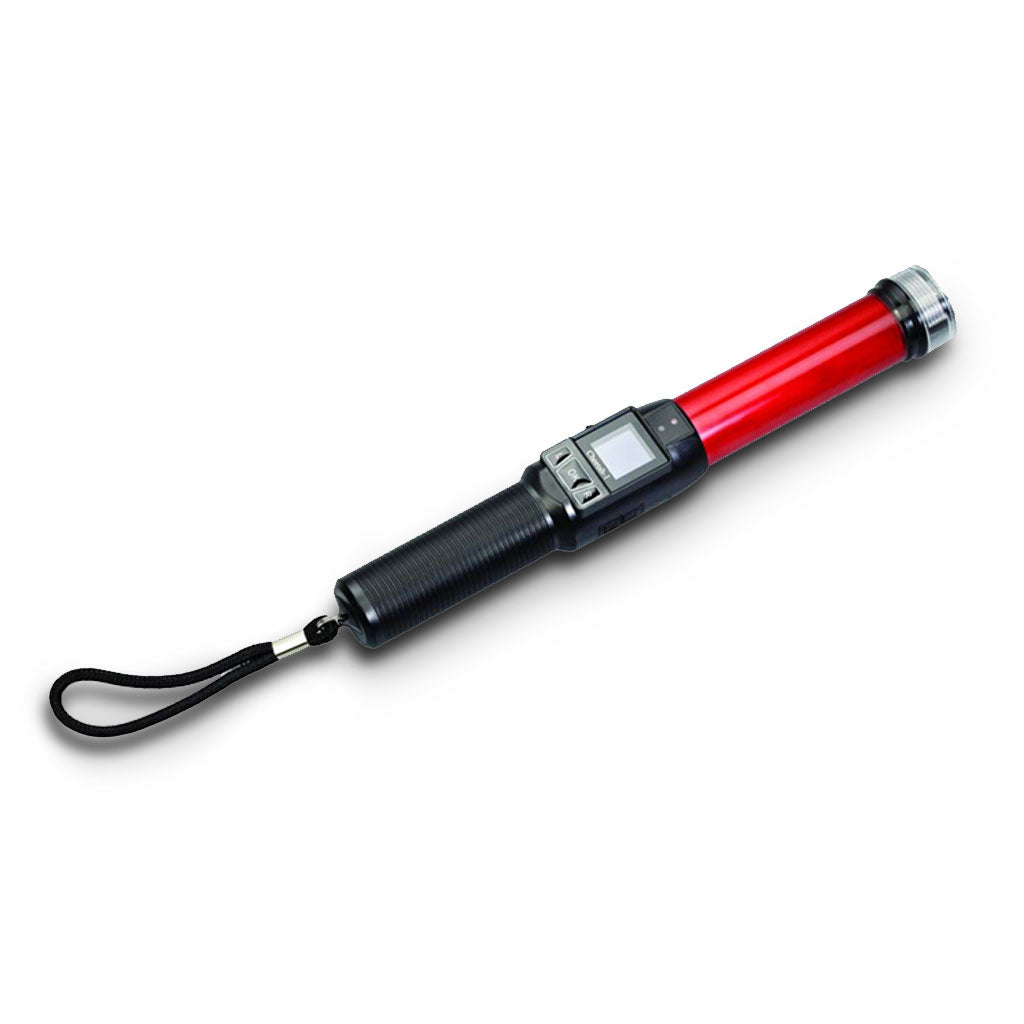

- Cheetah 1 is a rapid breath alcohol analyzer for quick testing with the following features
- UK made electrochemical/ fue cell sensor with high reliability.
- Quick and precise analysis;
- Rapid and convenient, do not need mouthpieces;
- With traffic baton and flahlight illumation function
- Large battery capacity, can do testing for 8 hours.
| Details | Technical data |
| Principle of measurement | Electrochemical Sensor, Alcohol-specific |
| Measurement Range | 0-80mg/100ml BAC |
| Test Mode | For quick testing, automatic sampling |
| Way of Breathe sample extraction | Motor continuous air extraction, speed no less than 0.8L |
| Temperature Range-Operation | -5C-+45C |
| Temperature Range Storage | -30C-70C |
| Measuring Time | Adjustable (Minimum time: 1 second) |
| Working Pressure | 600-1400hPa |
| Working Temperature | 20-98%r.h. |
| Screen | OLED Digital Screen |
| Battery | 1 Rechargeable battery, 3.7V/3000mAh |
| Continuous working time | More than 8 hours |
| Flashing Light | 2 Lights of 3W |
| Vibration Alarm | When the concentration exceed the set point value, device will give vibration alarm. |
| Dimensions | L(324) mm X Outer Diameter (45) mm |
| Weight | Approx. 231grams |
| Test |
|
| Analyzing time | <5s |
| Clearing time | <10s |
| Measuring range | 15-35, 35-65, >80 |
